How to Connect Directly to your Azure VNet

This tutorial empowers you to deploy an n2x-node within an Azure Virtual Network and configure it to directly access existing Azure Virtual Machines in a private subnet. Streamline your workflow and prioritize security by eliminating the need for a bastion host and enabling direct, encrypted private access from any node in the n2x.io network topology.

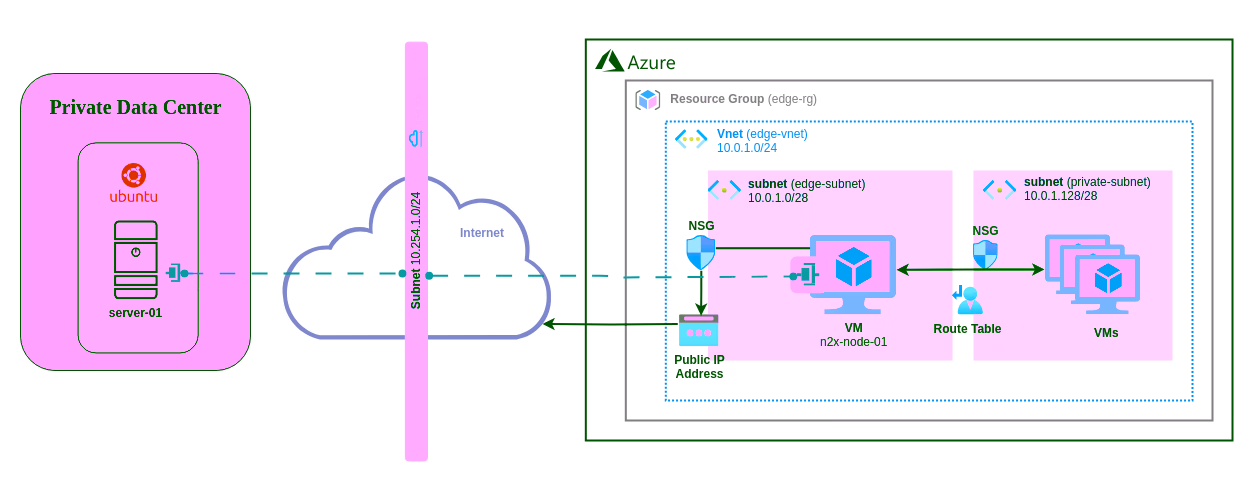

Here is the high-level overview of tutorial setup architecture:

In our setup, we will be using the following components:

• Azure Virtual Network is a service that provides the fundamental building block for your private network in Azure. For more info please visit the Azure Documentation

• n2x-node is an open-source agent that runs on the machines you want to connect to your n2x.io network topology. For more info please visit n2x.io Documentation.

Before you begin

In order to complete this tutorial, you must meet the following requirements:

• An Azure account with an active subscription.

• A n2x.io account and one subnet with 10.254.1.0/24 prefix.

Step-by-step Guide

Step 1 - Deploying a n2x-node in Azure

This step-by-step guide, will help you set up an n2x-node in Azure. It covers the creation of all the necessary infrastructure within Azure, including a resource group (RG), virtual network (VNet), subnet, network security group (NSG), and a virtual machine (VM).

Step 2 - Configuring n2x-node to export VNet CIDR

Before configuring n2x-node-01 to export VNet CIDR, we need to enable IP forwarding on both the Azure VM and its associated Network Interface Card (NIC). This allows the VM to forward incoming IPv4 packets. Here's how to do it:

1. Enable IPv4 forwarding at the Linux level.

2. Enable IPv4 forwarding in NIC associated with the VM.

Now, to make the VNet CIDR available on your n2x.io subnet we need to configure the n2x-node-01 to export this CIDR. For this, we need to edit /etc/n2x/n2x-node.yml and add the following configuration:

# network routes behind this node (optional)
routes:
  export:
    - <VNet CIDR>
  import:

Restart the n2x-node service for this change to take effect:

sudo systemctl restart n2x-node

Step 3 - Deploying Private Azure Virtual Machines

Before creating the Private Azure Virtual Machines we need to create a private subnet and some additional resources:

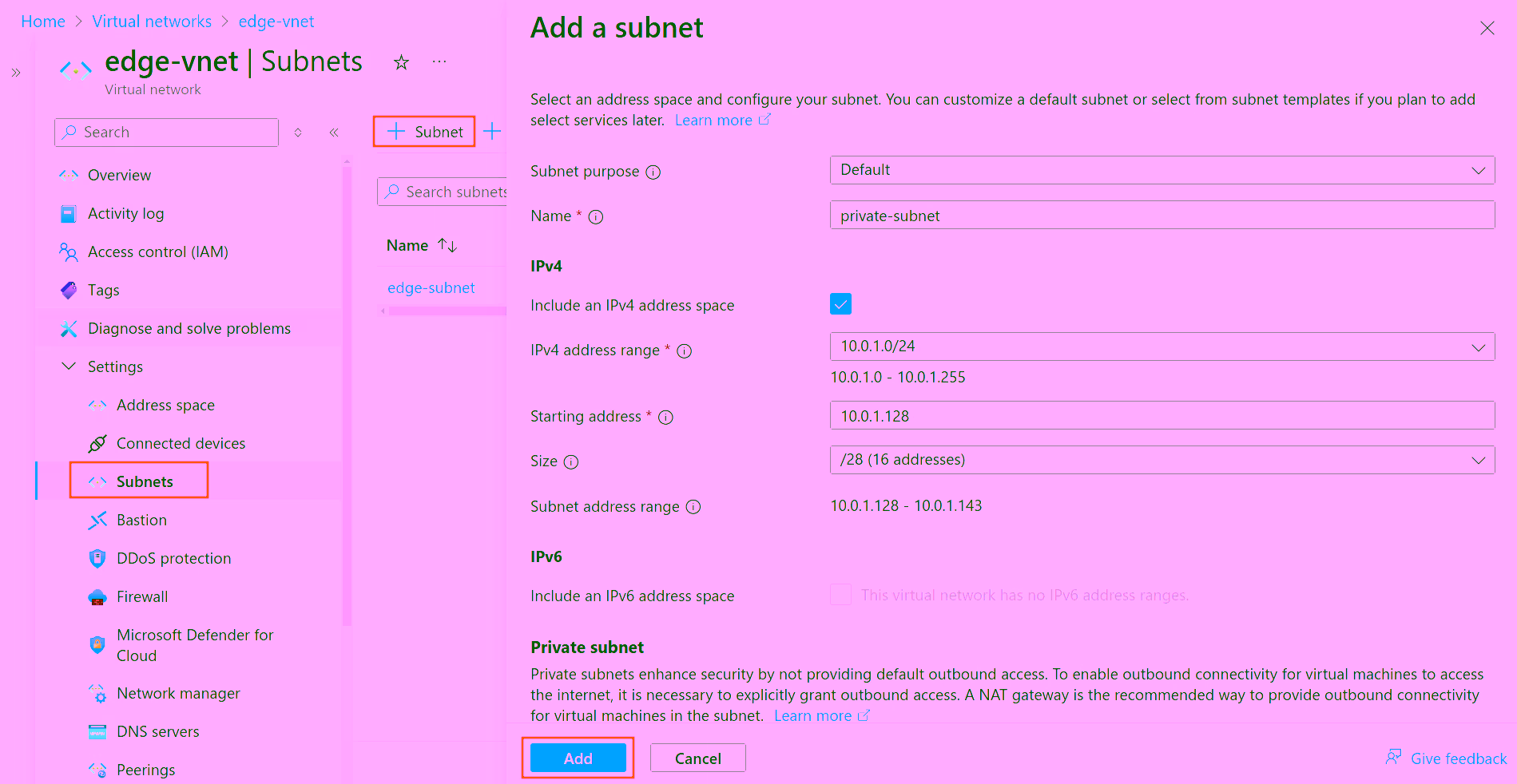

1. Add the private-subnet in the edge-vnet Vnet as described in the following table. For more information, see Add a Subnet:

   Subnet Settings

   Subnet Name	IPv4 address range	Starting address	Size	NAT gateway	NSG	Route table
   private-subnet	10.0.1.0/24	10.0.1.128	/28	none	none	none

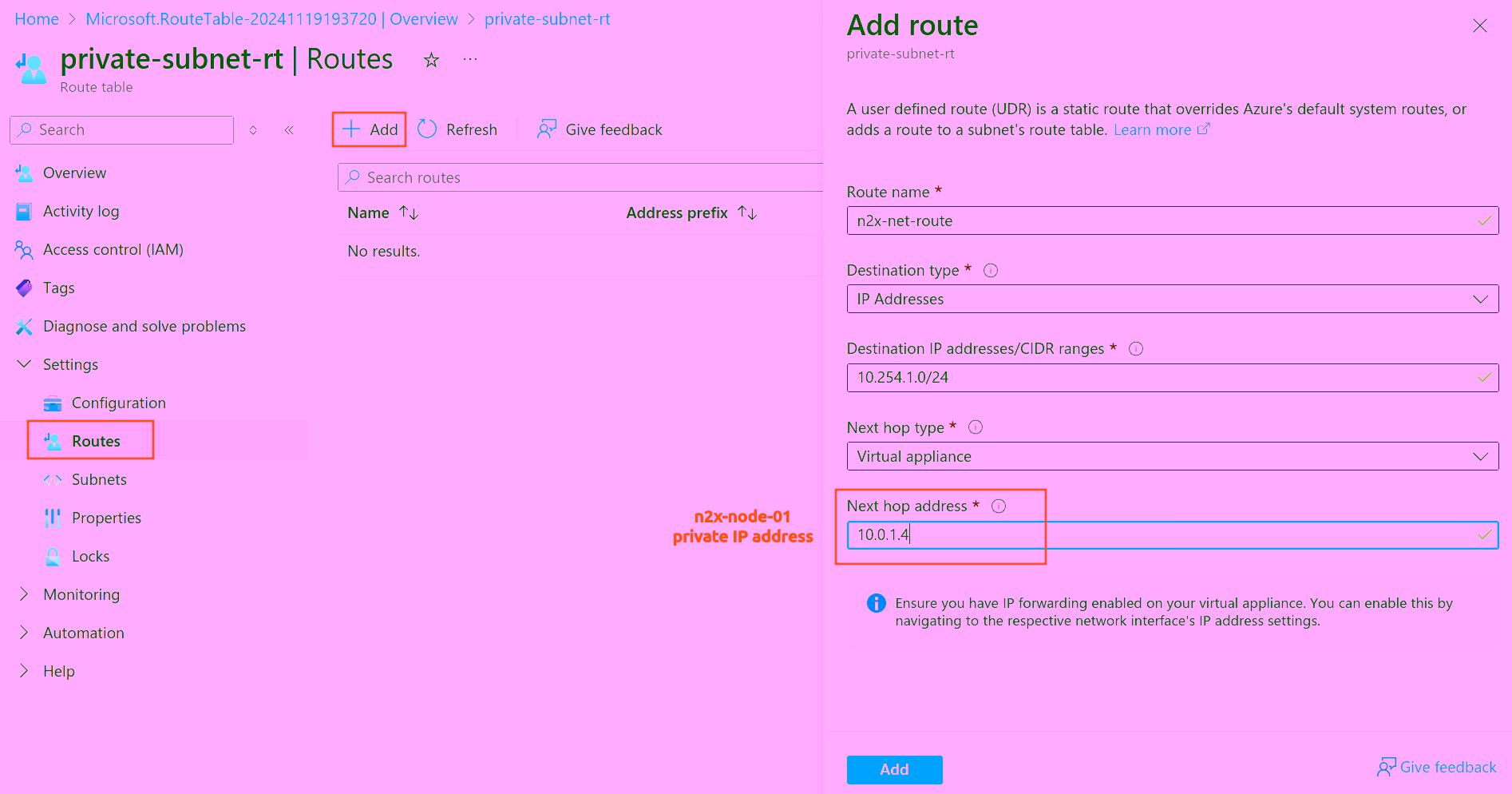

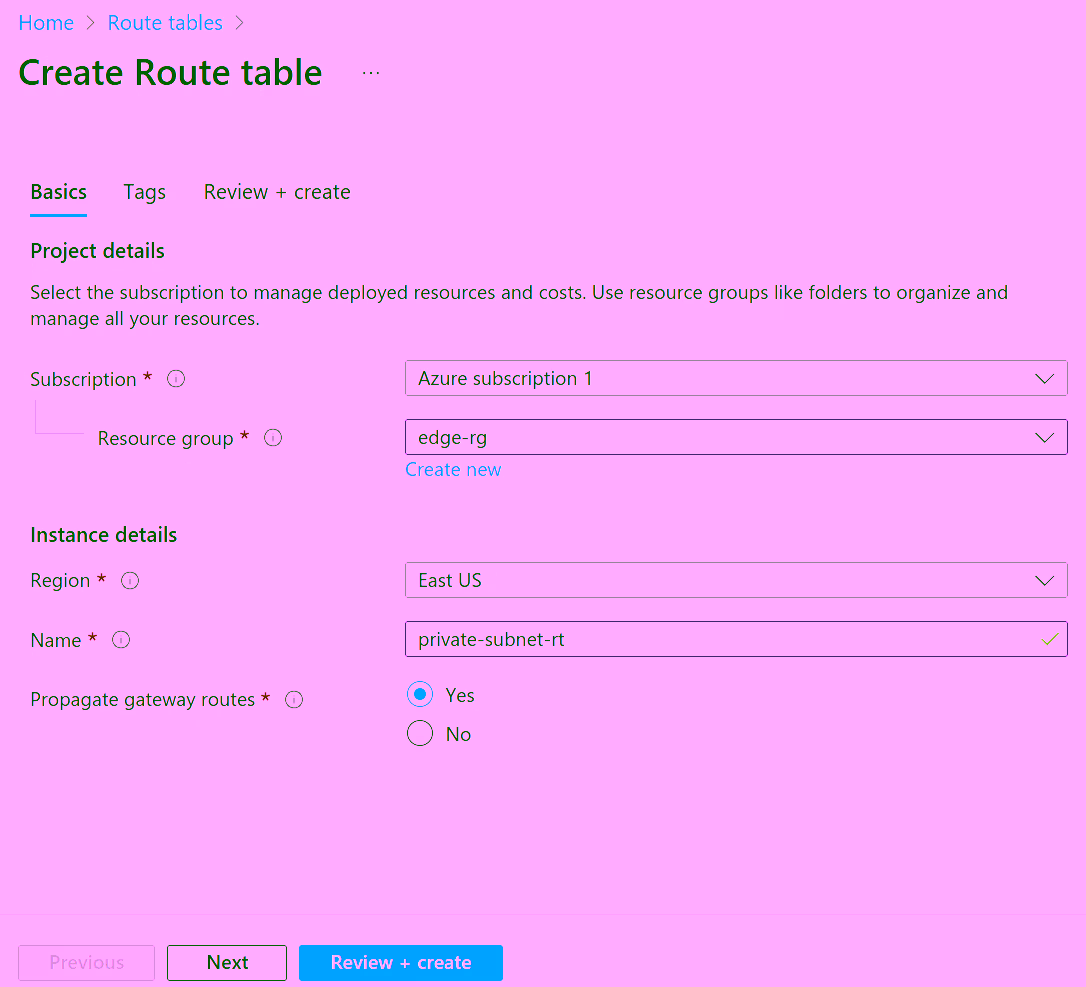

2. Create a routing table for the private-subnet and add a new route in the route table with the destination 10.254.1.0/24 (n2x.io subnet CIDR) vía IP address of n2x-node-01 VM. For more information, see Manage Route Table.

   Routing Table Settings

   Resource Group	Region	Name	Propagate gateway routes
   edge-rg	East US	private-subnet-rt	Yes



   Route Settings

   Route name	Destination Type	Destination IP addresses / CIDR Range	Next hop type	Next hop address
   n2x-net-route	IP Addresses	10.254.1.0/24	Virtual appliance	10.0.1.4



3. Create a network security group private-vms-nsg that allows ICMP and SSH access from the n2x.io subnet 10.254.1.0/24. For more information, see Manage network security groups.

   Network Security Group Settings

   Resource Group	Region	Name
   edge-rg	East US	private-vms-nsg



   Network Security Group Rules

   Rule	Source	Destination	Service	Protocol	Action
   Inbound	10.254.1.0/24	Any	Custom	ICMPv4	Allow
   Inbound	10.254.1.0/24	Any	SSH	TCP	Allow

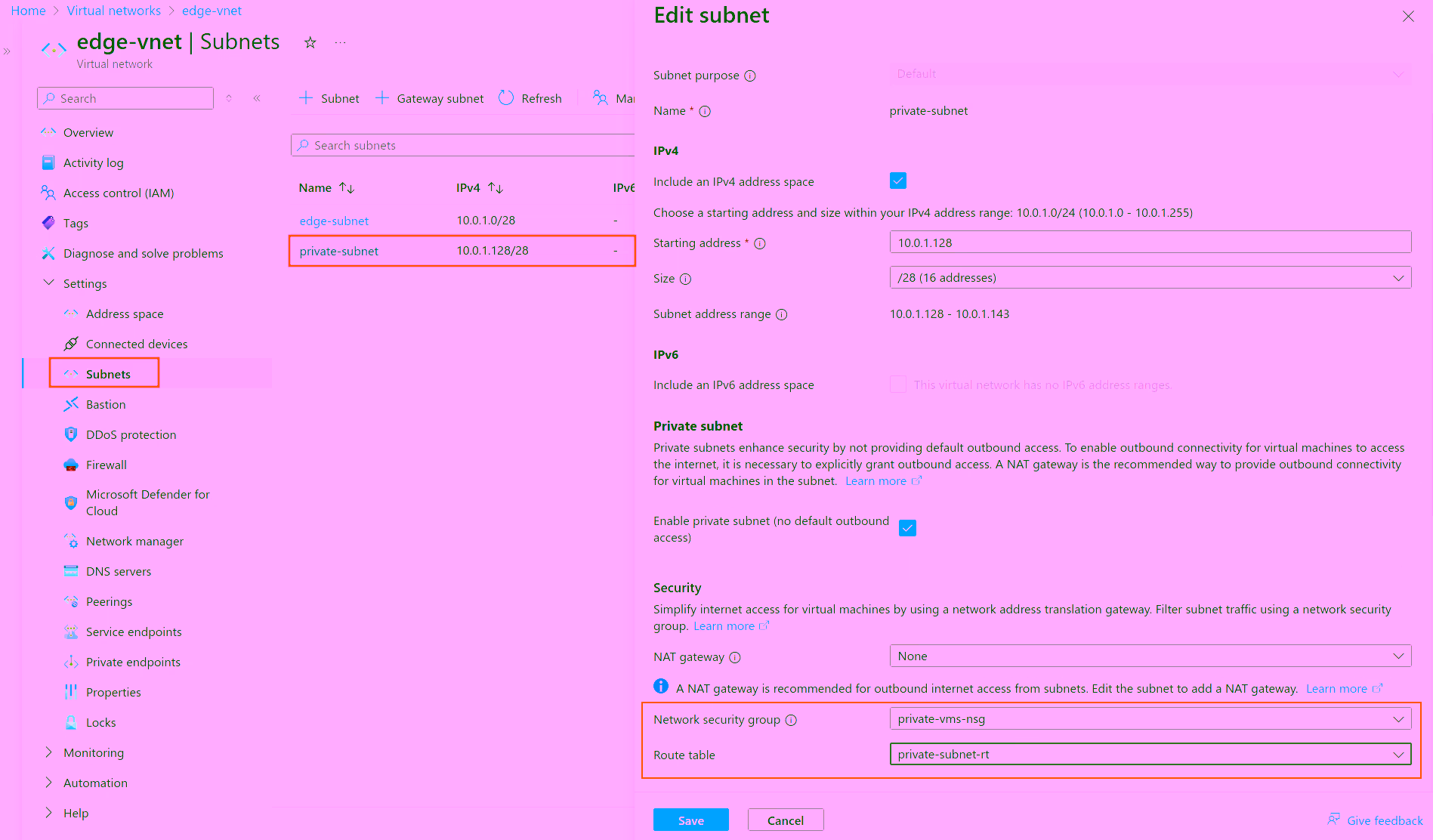

4. The next step involves associating the previously configured private-subnet-rt route table and private-vms-nsg network security group with the private-subnet. To do this, navigate to the Virtual Networks section, select edge-vnet and edit the private-subnet:

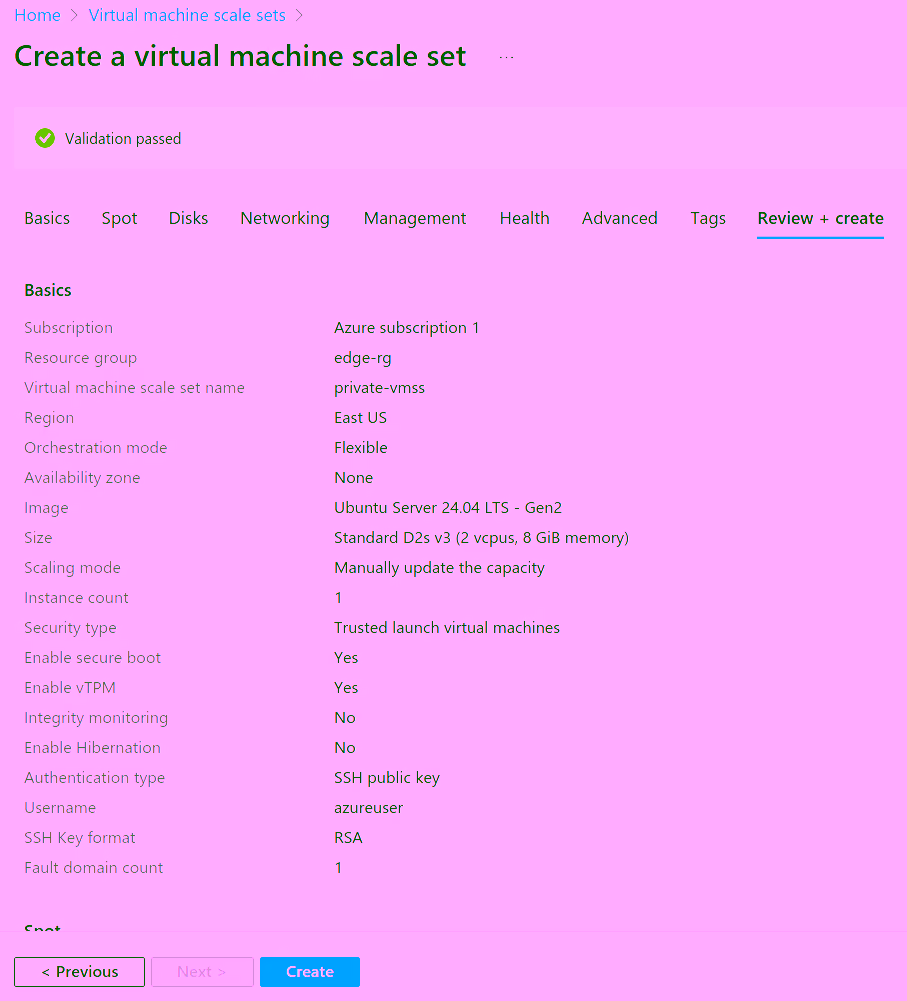

Now, we can create a Virtual Machine Scale Sets named private-vmss to automatically adjust the number of Virtual Machines based on demand.

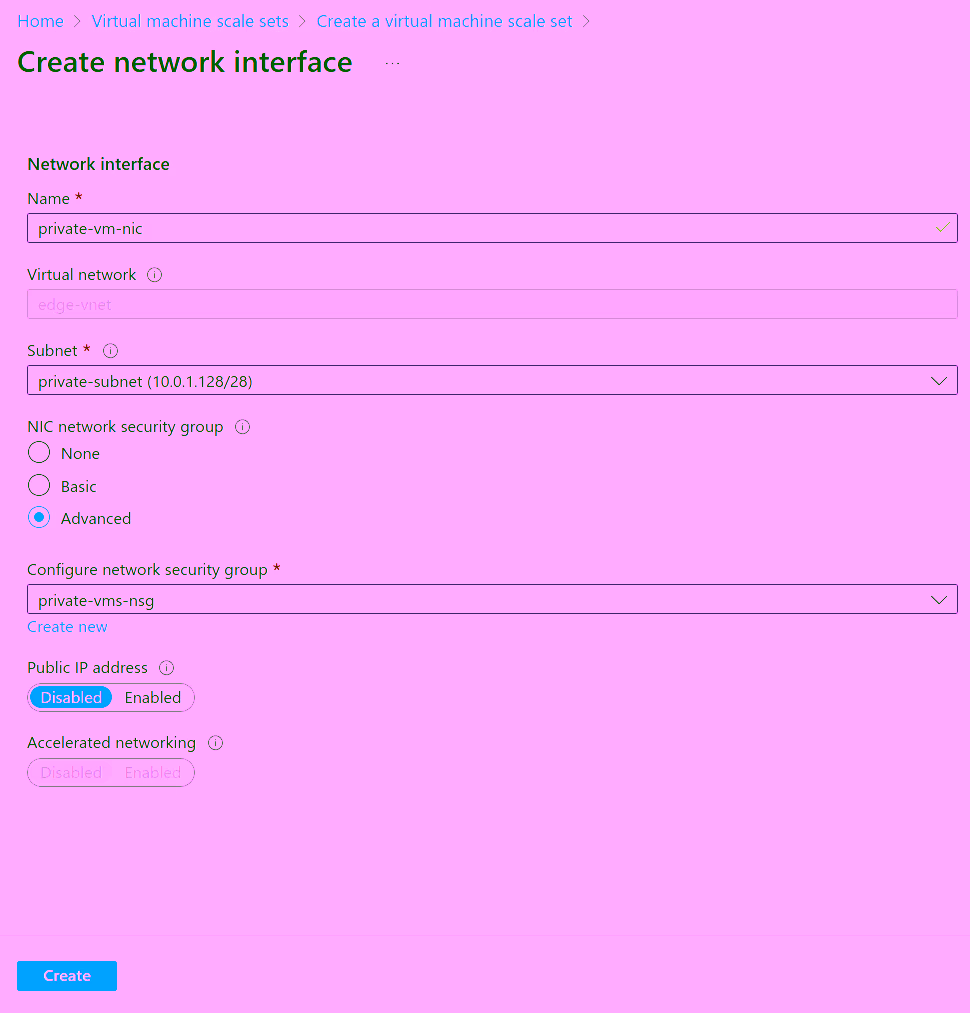

The key configuration for the Virtual Machine Scale Sets is to associate it with the previously created resources. For more information on this process, refer to Create virtual machines in a scale set using Azure portal.

Once the Virtual Machine Scale Sets is configured, a new VM will be deployed in the private-subnet.

Step 4 - Connecting the server-01 to our n2x.io network topology

Now we need to connect the server-01 must be able to access the Virtual Machines.

Adding a new node in a subnet with n2x.io is very easy. Here's how:

1. Head over to the n2x WebUI and navigate to the Network Topology section in the left panel.
2. Click the Add Node button and ensure the new node is placed in the same subnet as the n2x-node-01.
3. Assign a name and description for the new node.
4. Click Add New Connected Node to Subnet.

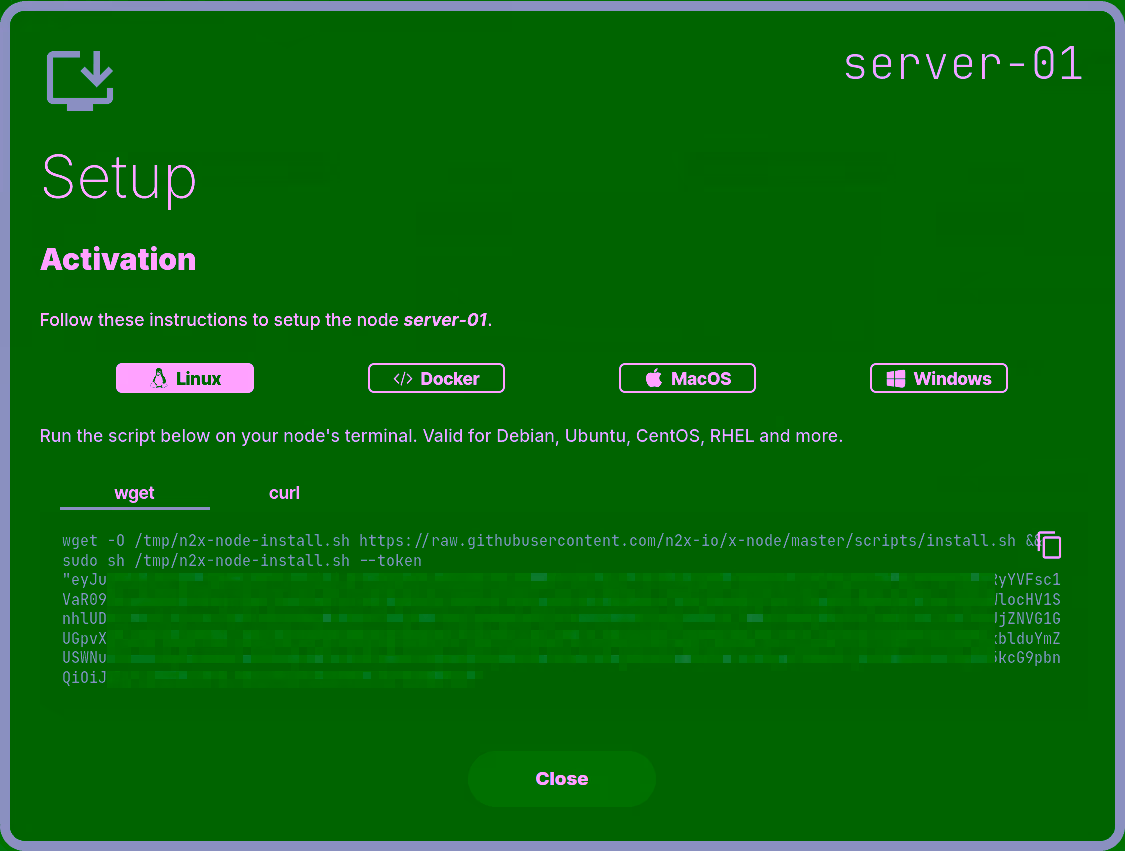

Here, we can select the environment where we are going to install the n2x-node agent. In this case, we are going to use Linux:

Run the script on server-01 terminal and check if the service is running with the command:

systemctl status n2x-node

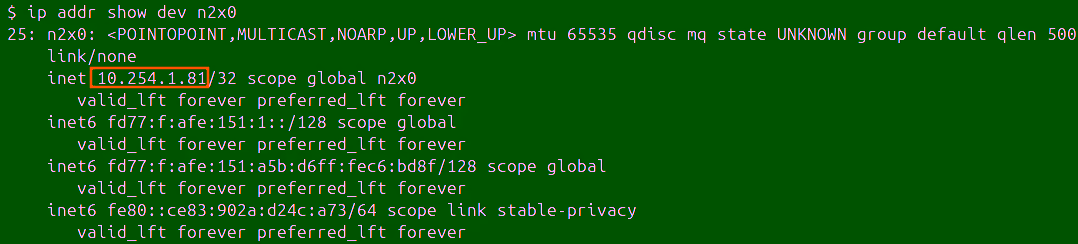

You can use ip addr show dev n2x0 command on server-01 to check the IP assigned to this node:

At this point, we need to make the VNet CIDR available in our server-01 importing this CIDR. For this, we need to edit /etc/n2x/n2x-node.yml in server-01 and add the following configuration:

# network routes behind this node (optional)
routes:
  export:
    -
  import:
    - <VNet CIDR>

Restart the n2x-node service for this change to take effect:

systemctl restart n2x-node

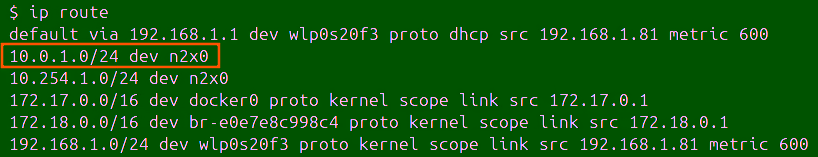

We can check the local routing table in server-01 with the following command:

ip route

Step 5 - Verify your Connection

Once you've completed all configuration steps, you should be able to ping or connect via SSH to any Virtual Machine in the Azure VNet from any device connected to the n2x.io subnet.

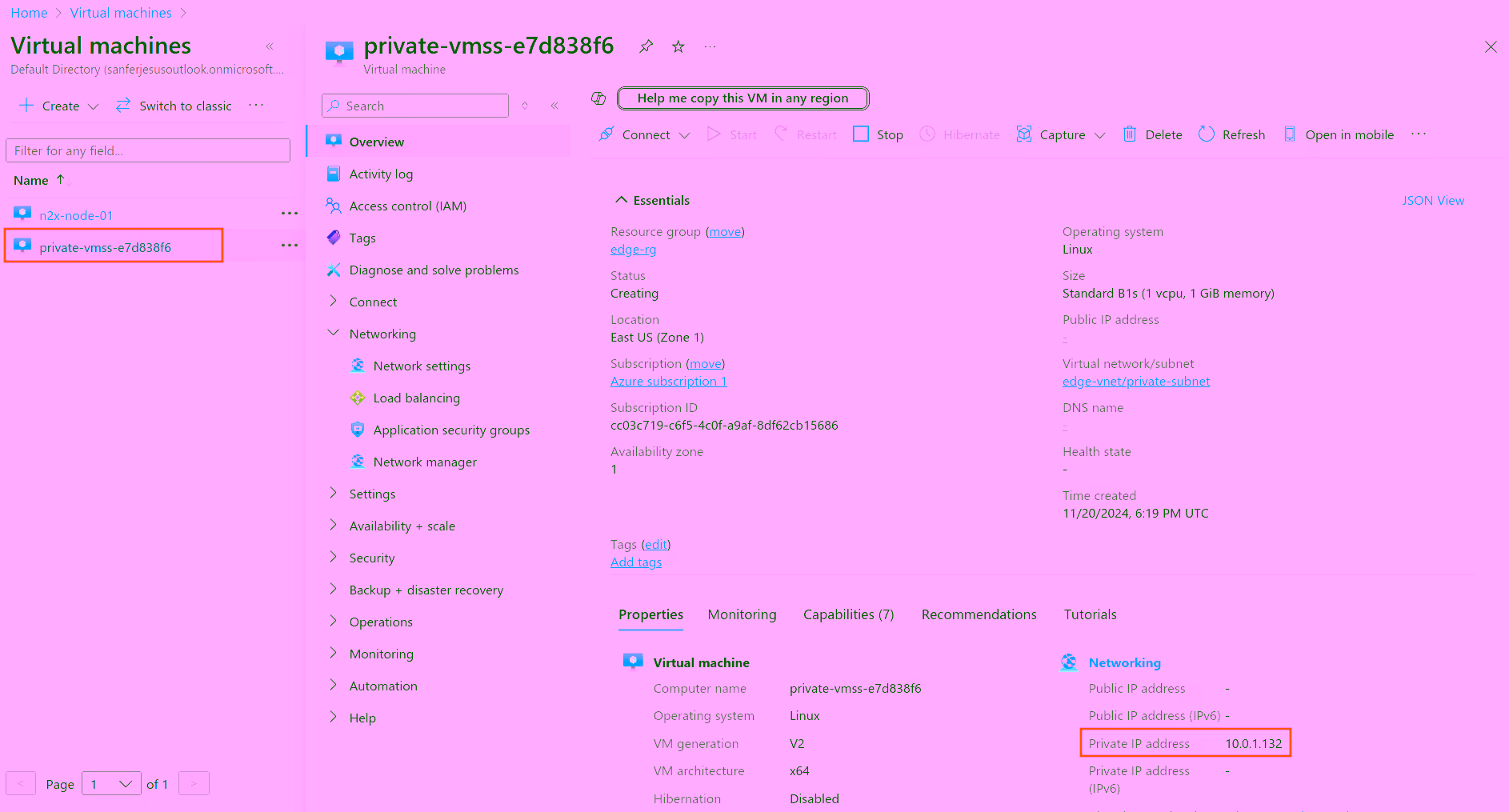

We'll now verify connectivity to the Virtual Machine from server-01 device. In this scenario, the Virtual Machine has been assigned the private IP address 10.0.1.132.

Ping Test

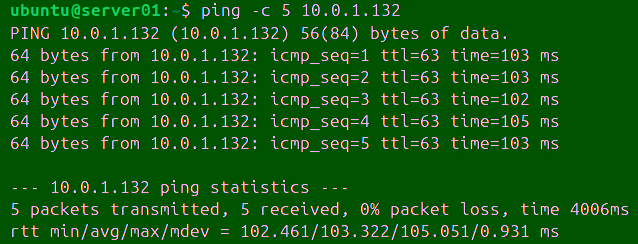

Let's first check if you can ping the Virtual Machine from server-01. Here's the command:

ping -c 5 10.0.1.132

SSH Connection

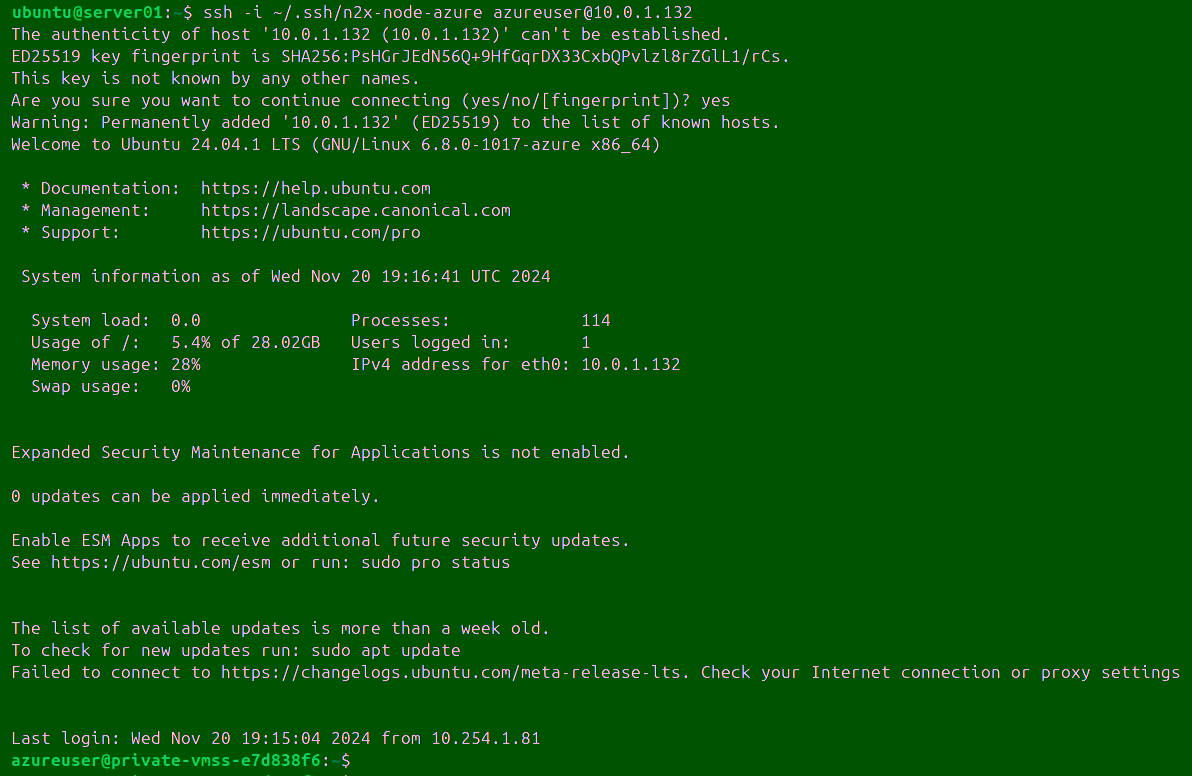

Now we can attempt an SSH connection to the Virtual Machine from server-01:

ssh -i ~/.ssh/n2x-node-azure [email protected]

Conclusion

This article guided you through establishing a direct, secure connection between your n2x.io network topology and your Azure VNet.

This setup offers a secure, cost-effective, and streamlined approach to accessing your Azure VNet resources from your n2x.io network.
